Ref : 57404

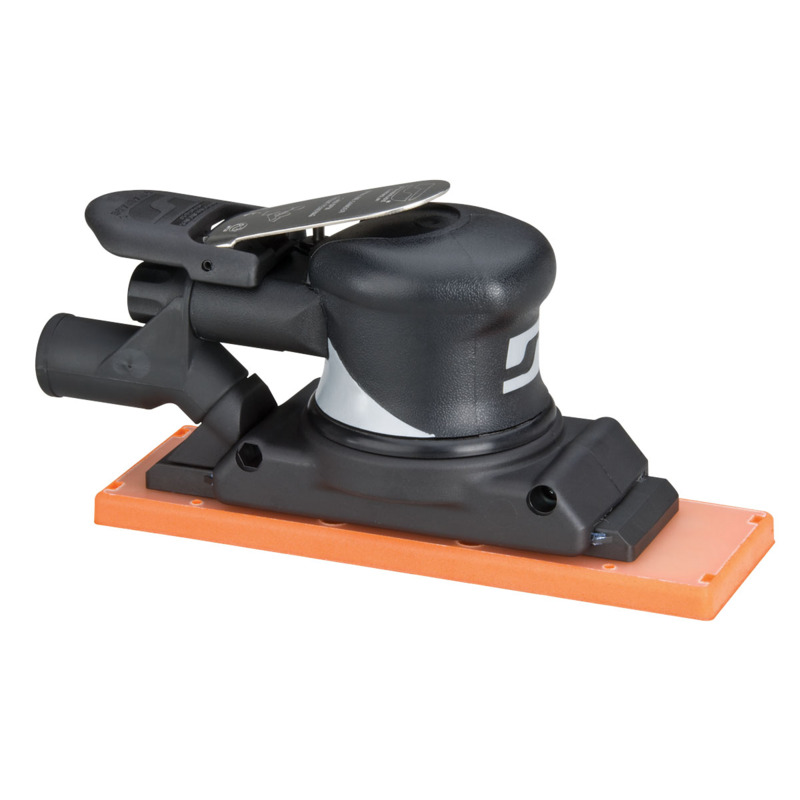

2-3/4" W x 8" L (70 mm x 203 mm) Dynaline Sander, Central Vacuum

.3 hp, 2,400 SPM, 3/8" (10 mm) Stroke Length, Rear Exhaust

€1,086 VAT Excl.
Share

  • 2,400 strokes per minute at 90 PSIG (6.2 Bar). 3/8" (10 mm) stroke length.

  • Has 1" outside diameter vacuum port for easy central vacuum hose connection.

  • Includes 2-3/4" wide x 8" long vinyl-face, vacuum sanding pad (57455).

hp
0.3 hp
Abrasive_Pad_Mounting Style
2 Screws
Accy. Max. Air Flow SCFM (LPM)
18
Air Inlet Thread
Exhaust Type
Height (in)
4 in
Height (mm)
95 mm
Hose I.D.
Length (in)
7 in
Length (mm)
178 mm
Max. RPM
2400
Vacuum Type
Weight (kg)
1.2 kg
Weight (lb)
2.64 lb
Width (in)
6 in
Width (mm)
152 mm
Current Manual (Parts Page) PD10.24R
Tune-Up Kit Page 96107
Previous Manual (Parts Page) #1 PD10.24
Previous Manual (Parts Page) #2 PD01.78
Previous Manual (Parts Page) #3 PD97.54
Literature 00001676

Related products

1/4" NPT Ball Swivel
Ref : 97016
1/4" NPT Ball Swivel
€66.27 VAT Excl.

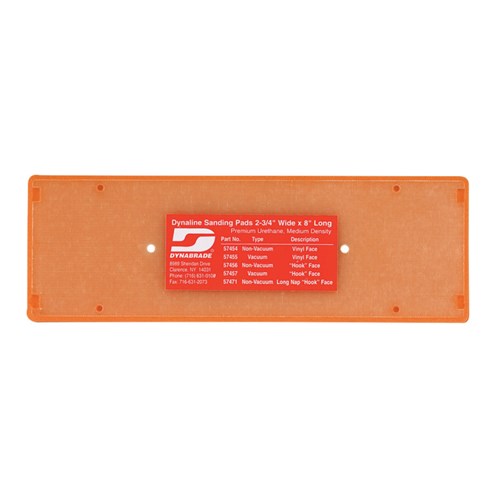

2-3/4" (70 mm) W x 8" (203 mm) L Non-Vacuum Dynaline Disc Pad, Vinyl-Face
