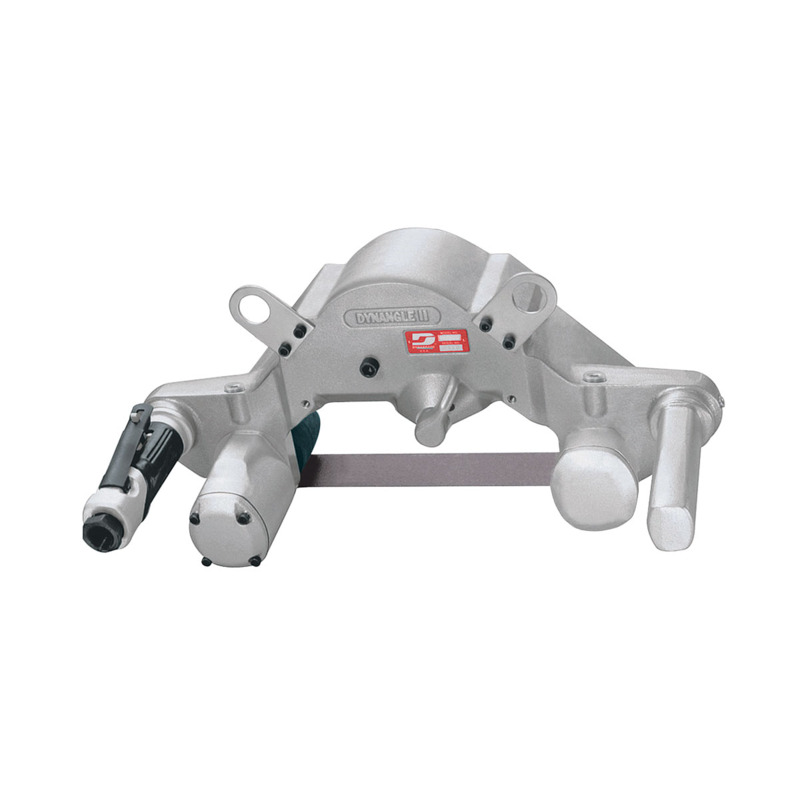

Dynangle II Abrasive Belt Tool, Single Motor
1.2 hp, Straight-Line, 13,000 RPM, Front Exhaust, for 2" W x 34" L (51 mm x 864 mm) Belts
-
Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.
-

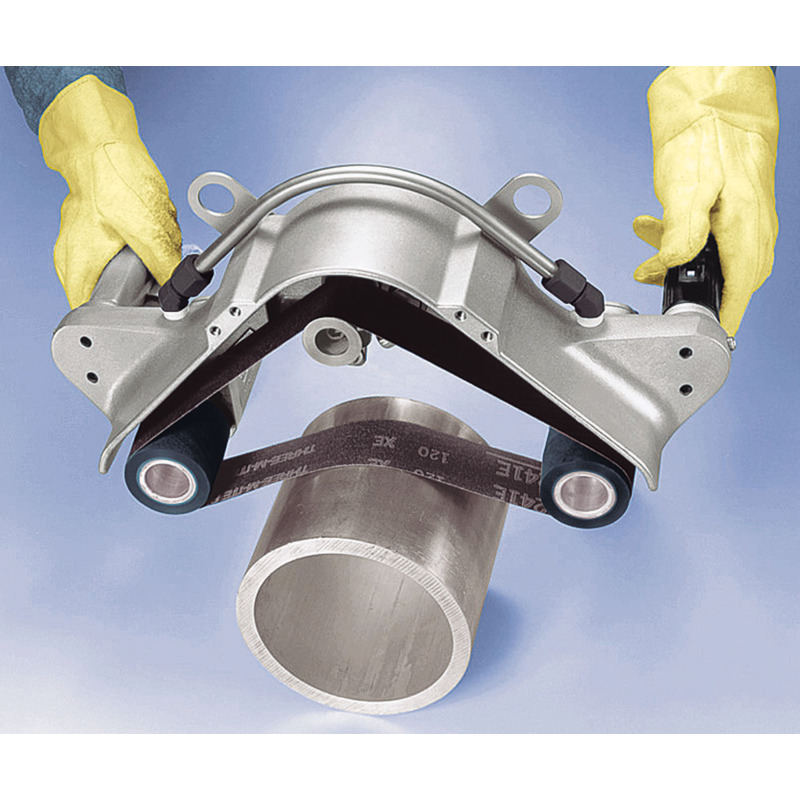

Single Motor model uses 2" x 34" belts; belts spans 11-1/2" for 'strap polishing' up to 36" diameter pipe.
-
14350 Conversion Kit available to upgrade single motor model to a dual motor model at a later date, if desired.
-
Safety-lock lever-throttle; hanger brackets included for optional overhead suspension.
-
For grinding with a platen pad, dual motor models are recommended.
| hp |
1.2 hp
|
|---|
| Air Inlet Thread |
|---|
| Exhaust Type |
|---|
| Height (in) |
9 in
|
|---|
| Height (mm) |
216 mm
|
|---|
| Hose I.D. |
|---|
| Length (in) |
19 in
|
|---|
| Length (mm) |
479 mm
|
|---|
| Max. RPM |
13000
|
|---|
| Max. SFPM |
8500
|
|---|
| Tool Style |
Straight Line
|
|---|
| Vacuum Type |
|---|
| Weight (kg) |
7.1 kg
|
|---|
| Weight (lb) |
15.66 lb
|
|---|
| Width (in) |
13 in
|
|---|
| Width (mm) |
330 mm
|
|---|
